Palo Alto Networks Enterprise Firewall PA-3260
Next-Generation Firewall Appliance in a Ruggedized Form
Factor
Palo Alto Networks Products
PA-3260 Series Hardware

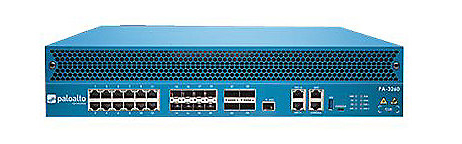

Palo Alto Networks PA-3260 with redundant AC power
supplies
#PAN-PA-3260
Our Price: Request a Quote
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
The Palo Alto Networks® PA-3200 Series next-generation firewalls are designed for data center and internet gateway deployments. This series is comprised of the PA-3260, PA-3260, and PA-3260 firewalls. These models provide flexibility in performance and redundancy to help you meet your deployment requirements. All models in this series provide next-generation security features to help you secure your organization through advanced visibility and control of applications, users, and content.
First Supported Software Release: PAN-OS® 8.1
Features:
-
8.8 Gbps firewall throughput1
(App-ID enabled1) - 4.7 Gbps Threat Prevention throughput2
- 4.8 Gbps IPsec VPN throughput
- 3,000,000 max sessions
- 135,000 new sessions per second3
- 6,000 IPsec VPN tunnels/tunnel interfaces
- 2,048 SSL VPN Users
- 10 virtual routers
- 1/6 virtual systems (base/max4)
- 60 security zones
- 5,000 max number of policies
Front Panel:
|
Item
|
Component
|
Description
|
|---|---|---|
|
1
|
Ethernet ports 1 through 12
|
Twelve RJ-45 10Mbps/100Mpbs/1Gbps ports for network
traffic. The link speed and link duplex are
auto-negotiate only.
|
|
2
|
SFP ports 13 through 20
|
These ports vary depending on your firewall model:
|
|
3
|
QSFP+ ports 21 through 24
|
(PA-3260 only) Four QSFP+
(40Gbps) ports as defined by the IEEE 802.3ba
standard.
|
|
4
|
HSCI port
|
One SFP+ (10Gbps) port (supports only an SFP+
transceiver or passive SFP+ cable).
Use this port to connect two PA-3200 Series firewalls
in a high availability (HA) configuration as follows:
The HSCI ports must be connected directly between
the two firewalls in the HA configuration (without
a switch or router between them). When directly
connecting the HSCI ports between two PA-3200
Series firewalls that are physically located near
each other, Palo Alto Networks recommends that you
use a passive SFP+ cable.
For installations where the two firewalls are not
near each other and you cannot use a passive SFP+
cable, use a standard SFP+ transceiver and the
appropriate cable length.
|
|
5
|
HA1-A and HA1-B ports
|
Two RJ-45 10Mbps/100Mbps/1000Mbps ports for high
availability (HA) control.
If the firewall dataplane restarts due to a
failure or manual restart, the HA1-B link will
also restart. If the dataplane restarts and only
HA1-B is connected, a split brain condition
occurs. The HA1-A link will not restart when the
dataplane restarts. Because of this behavior, we
recommend that you connect both HA1-A and HA1-B to
provide redundancy for the control link and to
avoid split brain issues.
|
|
6
|
MGT port
|
Use this Ethernet 10Mbps/100Mbps/1000Mbps port to
access the management web interface and perform
administrative tasks. The firewall also uses this port
for management services, such as retrieving licenses
and updating threat and application signatures.
|
| 7 |
CONSOLE port (RJ-45)
|
Use this port to connect a management computer to the
firewall using a 9-pin serial-to-RJ-45 cable and
terminal emulation software.
The console connection provides access to firewall
boot messages, the Maintenance Recovery Tool (MRT),
and the command line interface (CLI).
If your management computer does not have a
serial port, use a USB-to-serial converter.
Use the following settings to configure your terminal
emulation software to connect to the console port:
|
| 8 |
USB port
|
A USB port that accepts a USB flash drive with a
bootstrap bundle (PAN-OS configuration).
Bootstrapping speeds up the process of configuring and
licensing the firewall to make it operational on the
network with or without internet access.
|
| 9 |
CONSOLE port (Micro USB)
|
Use this port to connect a management computer to the
firewall using a standard Type-A USB-to-micro USB
cable.
The console connection provides access to firewall
boot messages, the Maintenance Recovery Tool (MRT),
and the command line interface (CLI).
Refer to the
Micro USB Console Port
page for more information and to download the Windows
driver or to learn how to connect from a Mac or Linux
computer.
|
|
10
|
LED status indicators
|
Eight LEDs that indicate the status of the firewall
hardware components (see
Interpret the PA-3200 Series Status LEDs
).
|
Back Panel:
|
Item
|
Component
|
Description
|
|---|---|---|
|
1
|
System drive
|
One 240GB solid-state drive (SSD) used to store the
PAN-OS system files, system logs, and network traffic
logs.
|
|
2
|
Exhaust fan tray
|
Provides ventilation and cooling for the firewall.
|
|
3
|
Ground studs
|
Use the two-post ground stud to connect the firewall
to earth ground. The firewall ships with a 6AWG
two-post ground lug (attached to the ground studs) but
does not include a ground cable.
|
| 4 |
PS1 and PS2
power supplies
|
Use the power supply inputs (either AC or DC depending
on the installed power supply type) to connect power
to the firewall. The second power supply is for
redundancy. When facing the back of the firewall, PS1
is on the left and PS2 is on the right.
|
Documentation:
Download the Palo Alto Networks PA-3260 Specification Datasheet (PDF).
